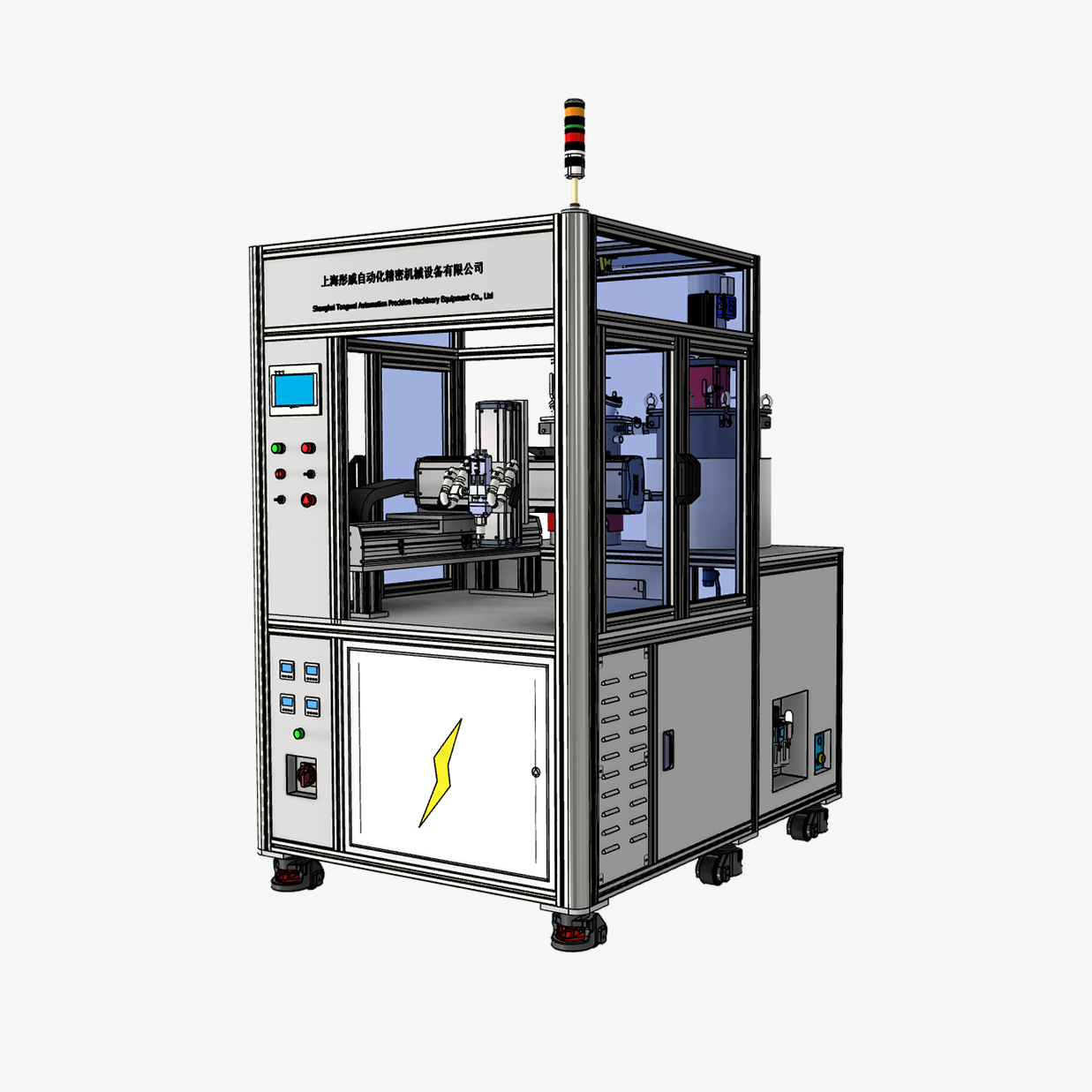

| 机型 Machine type | TW-5075S-ROBB |
| 料桶 Charging bucket | 10L～100L加热，搅拌，真空脱泡，自动上料，缺料报警 10L ~ 100L heating, stirring, vacuum defoaming, automatic feeding, lack of material alarm |
| 胶量范围 Gum range | 单次出较量3g～150g A single test 3g ~ 150g |
| 出胶精度 Glue accuracy | 0.02 |
| 比例调节范围 Range of proportional regulation | 100:8～100:100 |
| 比例精度 Scale accuracy | 0.02 |
| 出胶头 Glue delivery head | 1～10头 1 to 10 heads |
| 驱动方式 Driving mode | 气缸型、伺服型 Cylinder type, servo type |
| 计量泵 Metering pump | 标准活塞泵/陶瓷SSIC耐磨活塞泵 Standard piston pump/Ceramic SSIC wear-resistant piston pump |
| 控制方式 Control mode | PLC、触摸屏、定位模块、运动控制卡 PLC, touch screen, positioning module, motion control card |
| 机械手行程范围 Manipulator travel range | (X)300mm～1000mm、(Y)300mm～1000mm、(Z)100mm～400mm |
| 移动速度 Moving speed | 1～500mm/s |
| 位置精度 Position accuracy | ±0.02mm |
| 重复精度 repeatability | ±0.02mm |
| 胶水兼容性 Glue compatibility | 环氧树脂、聚氨酯、硅胶等 Epoxy resin, polyurethane, silicone, etc |
| 混合器 mixer | 静态混合/动态混合 Static mixing/dynamic mixing |
| 应用 Apply | 在线式三轴可根据现场流水线前道工序，后道工序直接对接形成在线式生产，保证产品外观以及节省人工搬运。 On-line three-axis can be directly connected according to the front process and the back process of the field assembly line to form on-line production, ensuring the appearance of the product and saving manual handling. |
