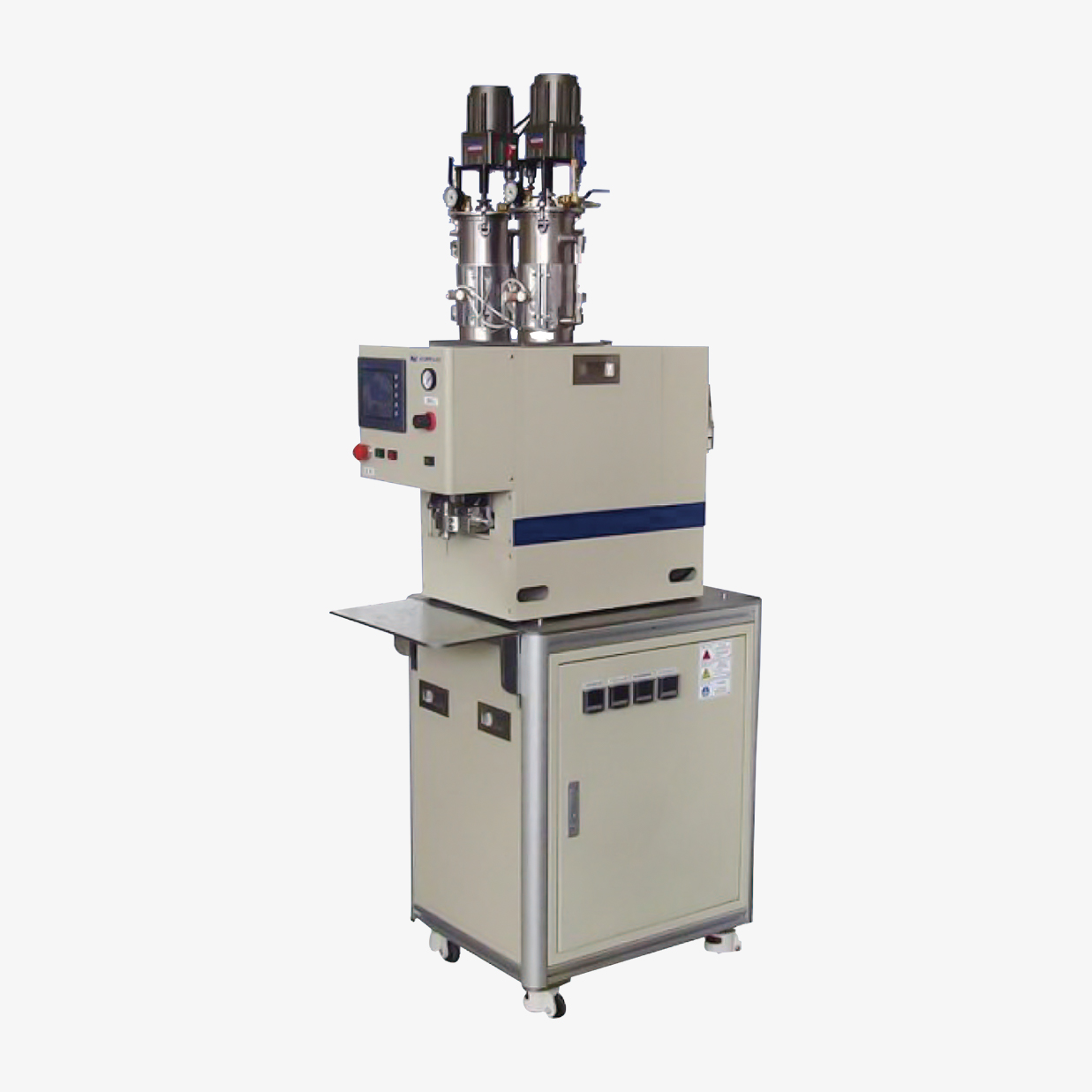

TW-E20/E20S
产品详情
| 机型 Machine type | TW-E20/E20S | |
| 吐出量范围 Discharge range | 0.03～4.0ml/shot | |
| 调配比率范围 Deployment ratio range | 100:100～100:5 | |
| 原料粘度范围 Feedstock viscosity range | 1～100.000mpa·s(高粘度时可通过加热来使用) 1～100.000mpa·s(high viscosity can be used by heating) | |
| 原料桶 Stock pail | 1L～4L(不锈钢制圆形原料桶)的组合 Combination of 1L-4L(stainless steel round raw material barrel) | |
| 计量方式 Method of measurement | 容积计量(刚性载入方式) Volume measurement | |
| 混合器 Mixer | 静态混合器/动态混合器 Static mixer/dynamic mixer | |
| 驱动方式 Driving mode | 气缸型、伺服型 Cylinder type, servo type | |
| 控制方式 Control mode | 小型PLC控制 Small PLC control | |
| 气源 Air source | 0.5MPa | |
| 耗电量 Power consumption | AC380V/2000W(真空泵550W不含) AC380V/2000W(vacuum pump 550W not included) | |
| 主体尺寸 Body size | 500(W×830(D)×1925(H) | |
